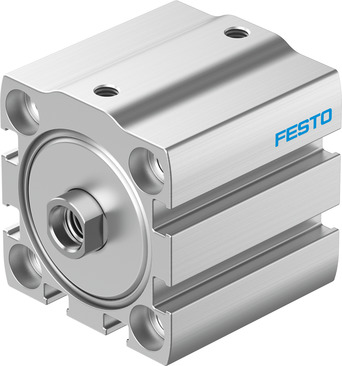

ADN-S-32-10-I-P

Stroke10 mm Piston diameter32 mm CushioningElastic cushioning rings/plates at both ends Mounting positionoptional Mode of operationDouble-acting Piston-rod endFemale thread DesignPiston Piston rod Symbol00991227 VariantsPiston rod at one end Operating pressure0.06 MPa ... 1 MPa Operating pressure0.6 bar ... 10 bar Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B2-L Cleanroom classClass 5 according to ISO 14644-1 Ambient temperature0 °C ... 80 °C Impact energy in end positions0.26 J Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke415 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke483 N Moving mass for 0 mm stroke31 g Additional moving mass per 10 mm stroke9 g Basic weight for 0 mm stroke107 g Additional weight per 10 mm stroke36 g Type of mountingEither: With through-hole Via female thread With accessories Pneumatic connectionM5 Note on materialsRoHS-compliant Material coverAnodised wrought aluminium alloy Material dynamic sealsNBR Material housingAnodised wrought aluminium alloy Material piston rodHigh-alloy stainless steel
