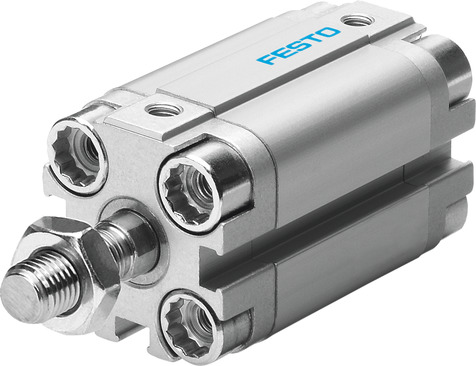

ADVU-16-10-A-P-A

Stroke10 mm Piston diameter16 mm Piston rod threadM8 CushioningElastic cushioning rings/plates at both ends Mounting positionoptional Mode of operationDouble-acting Piston-rod endMale thread DesignPiston Piston rod Position detectionVia proximity switch Symbol00991217 VariantsPiston rod at one end Operating pressure0.12 MPa ... 1 MPa Operating pressure1.2 bar ... 10 bar Operating pressure17.4 psi ... 145 psi Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Ambient temperature-20 °C ... 80 °C Impact energy in end positions0.1 J Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke90 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke121 N Moving mass for 0 mm stroke12 g Additional moving mass per 10 mm stroke4 g Basic weight for 0 mm stroke89 g Additional weight per 10 mm stroke15 g Type of mountingEither: With through-hole With accessories Pneumatic connectionM5 Material collar screwsHigh-alloy stainless steel Material coverWrought aluminium alloy Material dynamic sealsNBR TPE-U(PU) Material piston rodHigh-alloy stainless steel Material cylinder barrelWrought aluminium alloy
