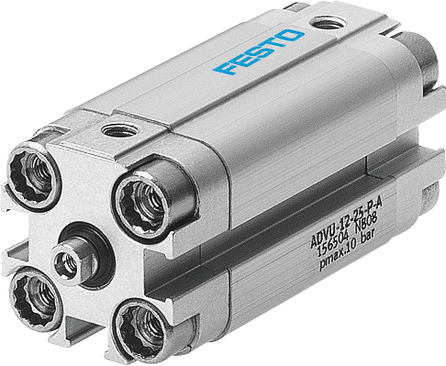

ADVU-25-10-P-A

Stroke10 mm Piston diameter25 mm Piston rod threadM5 CushioningElastic cushioning rings/plates at both ends Mounting positionoptional Mode of operationDouble-acting Piston-rod endFemale thread DesignPiston Piston rod Position detectionVia proximity switch Symbol00991217 VariantsPiston rod at one end Operating pressure0.1 MPa ... 1 MPa Operating pressure1 bar ... 10 bar Operating pressure14.5 psi ... 145 psi Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Ambient temperature-20 °C ... 80 °C Impact energy in end positions0.1 J Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N Moving mass for 0 mm stroke26 g Additional moving mass per 10 mm stroke6 g Basic weight for 0 mm stroke180 g Additional weight per 10 mm stroke28 g Type of mountingEither: With through-hole With accessories Pneumatic connectionM5 Material collar screwsGalvanised steel Material coverWrought aluminium alloy Material dynamic sealsNBR TPE-U(PU) Material piston rodHigh-alloy stainless steel Material cylinder barrelWrought aluminium alloy
