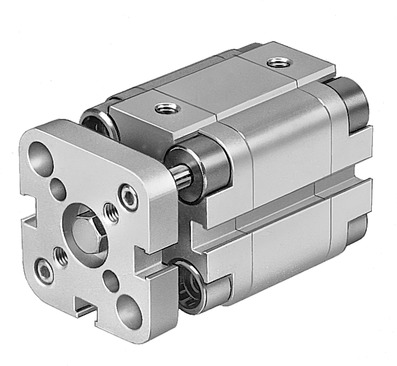

ADVUL-20-40-P-A

Stroke40 mm Piston diameter20 mm CushioningElastic cushioning rings/plates at both ends Mounting positionoptional DesignPiston Piston rod Position detectionVia proximity switch Symbol00991737 VariantsPiston rod at one end Protection against torque/guideGuide rod with yoke Operating pressure0.1 MPa ... 1 MPa Operating pressure1 bar ... 10 bar Mode of operationDouble-acting Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Ambient temperature-20 °C ... 80 °C Impact energy in end positions0.14 J Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke141 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188 N Moving mass for 0 mm stroke50 g Additional moving mass per 10 mm stroke11 g Basic weight for 0 mm stroke179 g Additional weight per 10 mm stroke26 g Type of mountingEither: With through-hole With accessories Pneumatic connectionM5 Material collar screwsGalvanised steel Material coverWrought aluminium alloy Material dynamic sealsNBR TPE-U(PU) Material piston rodHigh-alloy stainless steel Material cylinder barrelWrought aluminium alloy
