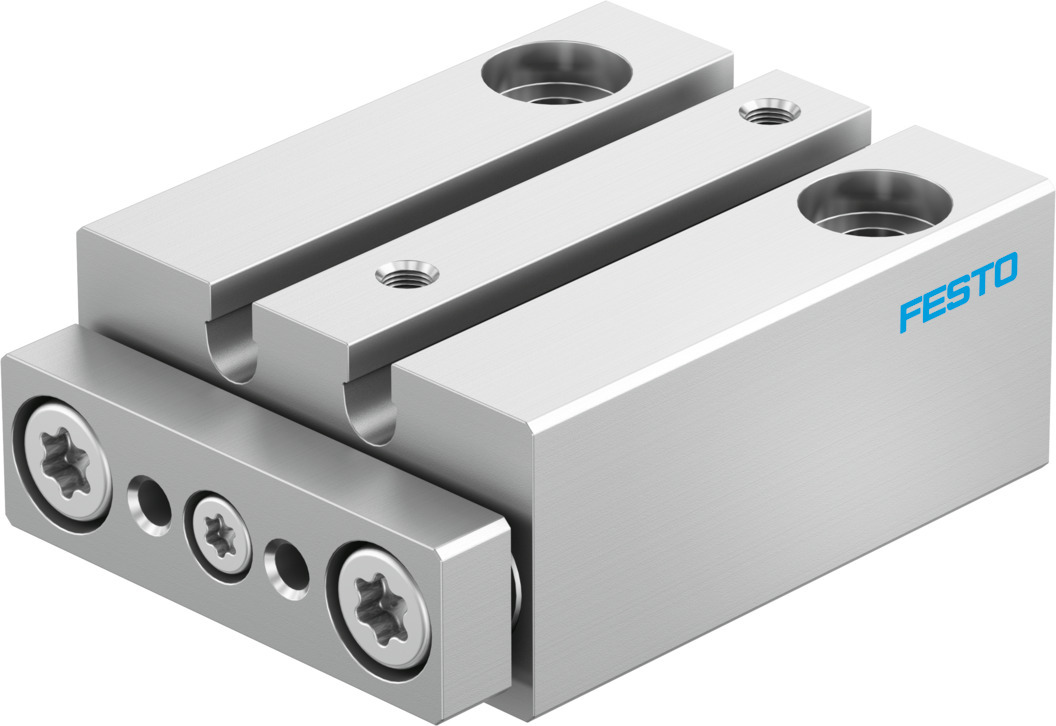

DFM-10-10-P-A-GF

Distance from centre of gravity of load to yoke plate xs10 mm Stroke10 mm Piston diameter10 mm Operating mode, drive unitYoke CushioningElastic cushioning rings/plates at both ends Mounting positionoptional GuidePlain-bearing guide DesignGuidance Position detectionVia proximity switch Symbol00991737 Operating pressure0.15 MPa ... 0.8 MPa Operating pressure1.5 bar ... 8 bar Max. speed1.7 m/s Mode of operationDouble-acting Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom classClass 6 according to ISO 14644-1 Ambient temperature-10 °C ... 60 °C Impact energy in end positions0.035 J Max. permissible torque load Mx as a function of stroke0.046 Nm Max. effective load dependent upon stroke at defined distance xs3 N Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke40 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke47 N Torsional backlash0.1 deg Moving mass13 g Product weight45.5 g Pneumatic connectionM3 Note on materialsRoHS-compliant Material coverHigh-alloy stainless steel Material sealsNBR Material dynamic sealsHNBR Material end plateAnodised wrought aluminium alloy Material guide rodHigh-alloy stainless steel Material housingAnodised wrought aluminium alloy Material piston rodHigh-alloy stainless steel
