- Distance from centre of gravity of load to yoke plate xs50 mm
- Stroke80 mm
- Piston diameter16 mm
- Operating mode, drive unitYoke
- CushioningElastic cushioning rings/plates at both ends
- Mounting positionoptional
- GuidePlain-bearing guide
- DesignGuidance
- Position detectionVia proximity switch
- Symbol00991737
- Operating pressure0.2 MPa ... 1 MPa
- Operating pressure2 bar ... 10 bar
- Max. speed0.8 m/s
- Mode of operationDouble-acting
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC1 - Low corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Cleanroom classClass 6 according to ISO 14644-1
- Ambient temperature-20 °C ... 80 °C
- Impact energy in end positions0.15 J
- Max. force Fy608 N
- Max. force Fy static608 N
- Max. force Fz608 N
- Max. force Fz static608 N
- Max. moment Mx13.98 Nm
- Max. torque Mx static13.98 Nm
- Max. moment My10.34 Nm
- Max. torque My static10.34 Nm
- Max. moment Mz10.34 Nm
- Max. torque Mz static10.34 Nm
- Max. permissible torque load Mx as a function of stroke1.69 Nm
- Max. effective load dependent upon stroke at defined distance xs55 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke90 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke121 N
- Moving mass428 g
- Product weight960 g
- alternative connectionsSee product drawing
- Pneumatic connectionM5
- Note on materialsRoHS-compliant
- Material coverWrought aluminium alloy
- Material sealsNBR
- Material housingWrought aluminium alloy
- Material piston rodHigh-alloy stainless steel
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文

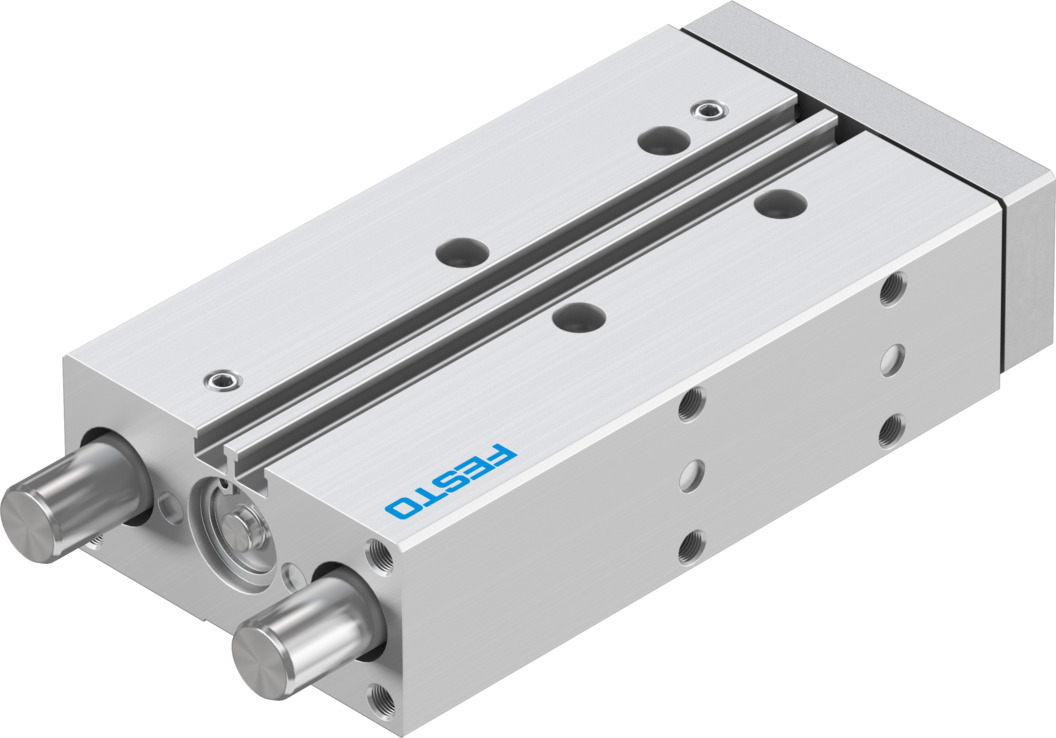

Compact cylinder
DFM-16-80-P-A-GF
DFM-16-80-P-A-GF
Subscribe to get pricesModel: DFM-16-80-P-A-GF
Order No: 170838
SKU: 1736925178587587529
Condition: New Sealed Under Guarantee
Size: 0.00 mm，0.00 mm，0.00 mm
Weight: 960.00g
Product Selection Engineer：Zuohuiqin
In Stock
Brief Introduction
DFM-16-80-P-A-GF
Max. torque Mz static10.34 NmMax. permissible torque load Mx as a function of stroke1.69 NmMax. effective load dependent upon stroke at defined distance xs55 NTheoretical force at 0.6 MPa (6 bar, 87 psi), return stroke90 NTheoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke121 NMoving mass428 gProduct weight960 galternative connectionsSee product drawingPneumatic connectionM5
