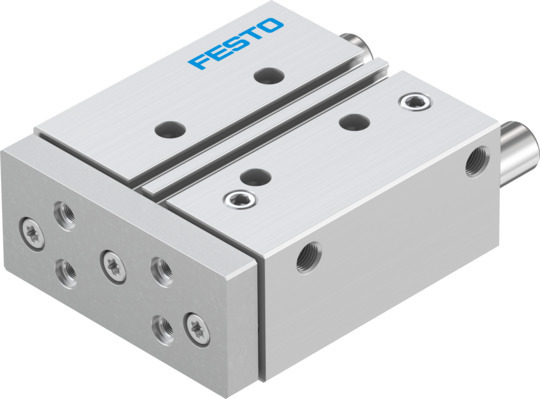

DFM-25-50-P-A-GF

Distance from centre of gravity of load to yoke plate xs50 mm Stroke50 mm Piston diameter25 mm Operating mode, drive unitYoke CushioningElastic cushioning rings/plates at both ends Mounting positionoptional GuidePlain-bearing guide DesignGuidance Position detectionVia proximity switch Symbol00991737 Operating pressure0.15 MPa ... 1 MPa Operating pressure1.5 bar ... 10 bar Max. speed0.8 m/s Mode of operationDouble-acting Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom classClass 6 according to ISO 14644-1 Ambient temperature-20 °C ... 80 °C Impact energy in end positions0.3 J Max. force Fy810.7 N Max. force Fy static810.7 N Max. force Fz810.7 N Max. force Fz static810.7 N Max. moment Mx27.56 Nm Max. torque Mx static27.56 Nm Max. moment My19.46 Nm Max. torque My static19.46 Nm Max. moment Mz19.46 Nm Max. torque Mz static19.46 Nm Max. permissible torque load Mx as a function of stroke5.26 Nm Max. effective load dependent upon stroke at defined distance xs115 N Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N Moving mass793 g Product weight1635 g alternative connectionsSee product drawing Pneumatic connectionG1/8 Note on materialsRoHS-compliant Material coverWrought aluminium alloy Material sealsNBR Material housingWrought aluminium alloy Material piston rodHigh-alloy stainless steel
