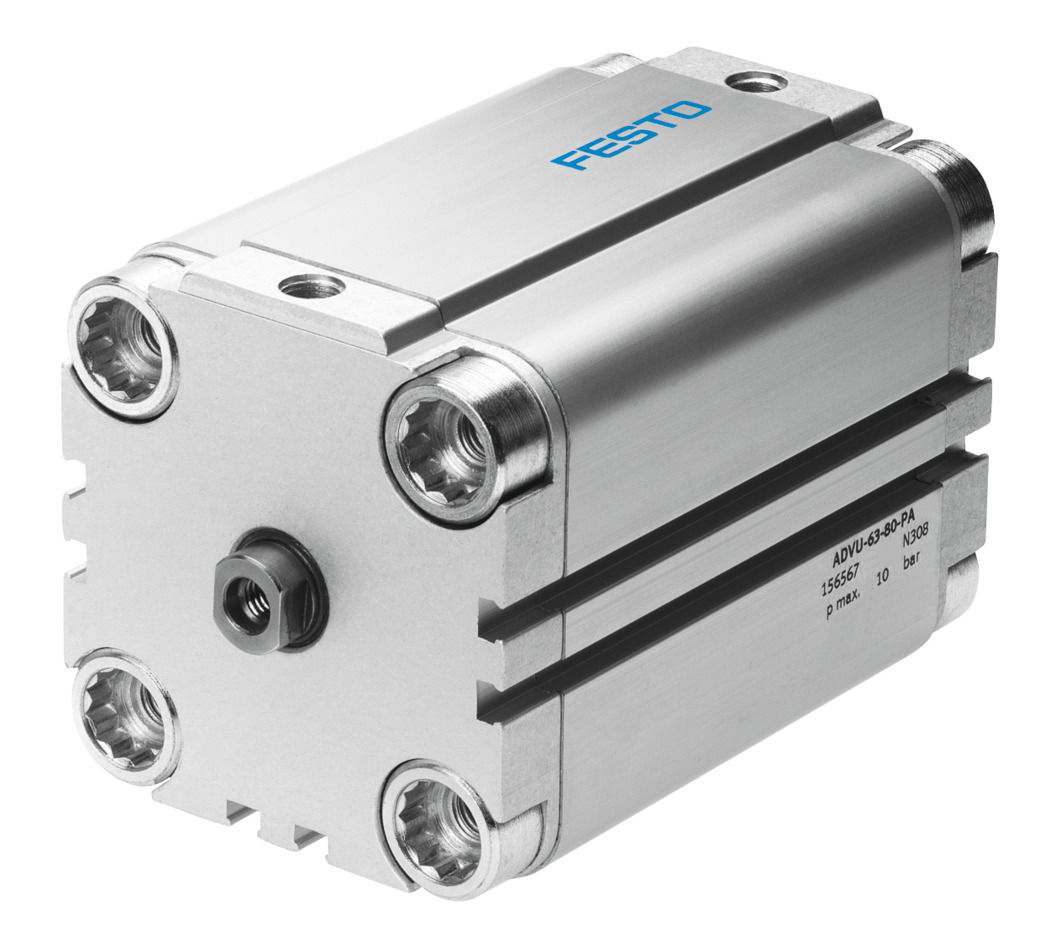

ADVU-50-100-A-P-A

Stroke100 mm Piston diameter50 mm Piston rod threadM8 CushioningElastic cushioning rings/plates at both ends Mounting positionoptional Mode of operationDouble-acting Piston-rod endFemale thread DesignPiston Piston rod Position detectionVia proximity switch Symbol00991217 VariantsPiston rod at one end Operating pressure0.08 MPa ... 1 MPa Operating pressure0.8 bar ... 10 bar Operating pressure11.6 psi ... 145 psi Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Ambient temperature-20 °C ... 80 °C Impact energy in end positions0.64 J Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1057 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178 N Moving mass for 0 mm stroke112 g Additional moving mass per 10 mm stroke16 g Basic weight for 0 mm stroke560 g Additional weight per 10 mm stroke72 g Type of mountingEither: With through-hole With accessories Pneumatic connectionG1/8 Material collar screwsGalvanised steel Material coverWrought aluminium alloy Material dynamic sealsNBR TPE-U(PU) Material piston rodHigh-alloy steel Material cylinder barrelWrought aluminium alloy
