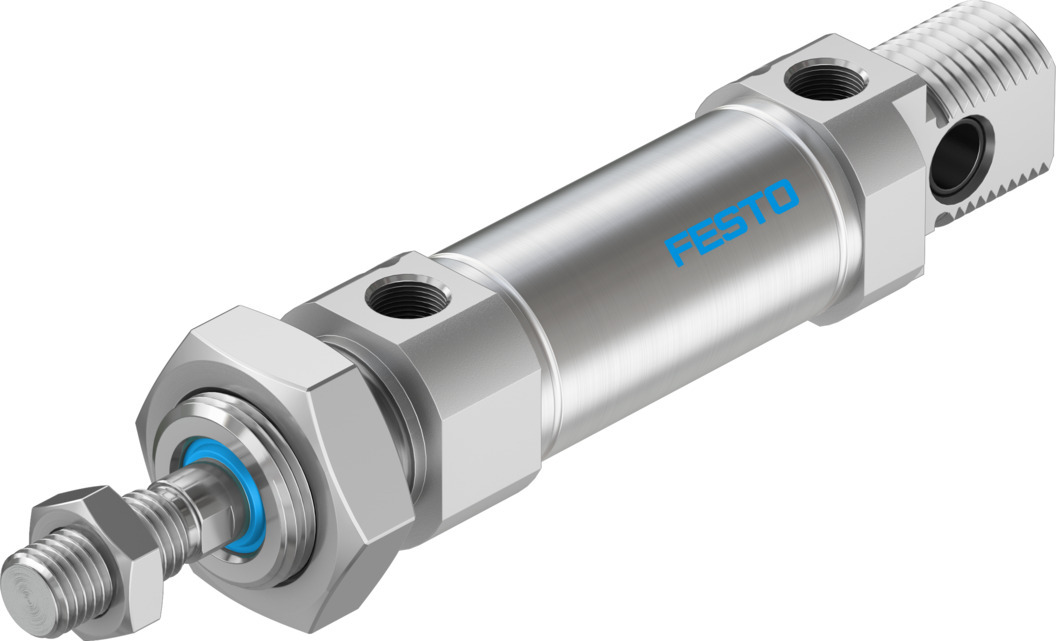

DSNU-25-83-PPV-A

DSNU-25-83-PPV- Stroke1 mm ... 500 mm Piston diameter25 mm Piston rod threadM10x1.25 CushioningPneumatic cushioning, adjustable at both ends Mounting positionoptional Conforms to standardCETOP RP 52 P ISO 6432 Piston-rod endMale thread DesignPiston Piston rod Cylinder barrel Position detectionVia proximity switch VariantsPiston rod at one end Operating pressure0.1 MPa ... 1 MPa Operating pressure1 bar ... 10 bar Mode of operationDouble-acting Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom classClass 6 according to ISO 14644-1 Ambient temperature-20 °C ... 80 °C Impact energy in end positions0.3 J Cushioning length17 mm Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247.4 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke294.5 N Moving mass for 0 mm stroke71 g Additional moving mass per 10 mm stroke6 g Basic weight for 0 mm stroke238 g Additional weight per 10 mm stroke11 g Type of mountingWith accessories Pneumatic connectionG1/8 Note on materialsRoHS-compliant Material coverWrought aluminium alloy Colourless anodised Material sealsNBR TPE-U(PU) Material piston rodHigh-alloy stainless steel Material cylinder barrelHigh-alloy stainless steel
