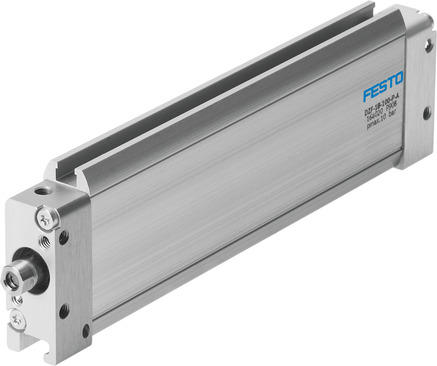

DZF-18-80-P-A

Stroke80 mm Piston diameter18 mm Equivalent diameter Piston rod threadM4 Torsional backlash at piston rod +/-1.2 deg CushioningElastic cushioning rings/plates at both ends Mounting positionoptional Mode of operationDouble-acting DesignPiston Piston rod Position detectionVia proximity switch Symbol00991217 VariantsPiston rod at one end Protection against torque/guideOval piston Operating pressure0.1 MPa ... 1 MPa Operating pressure1 bar ... 10 bar Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Ambient temperature-20 °C ... 80 °C Impact energy in end positions0.1 J Max. torque for protection against torsion0.2 Nm Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke123 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke153 N Moving mass for 0 mm stroke24 g Additional moving mass per 10 mm stroke4 g Additional weight per 10 mm stroke13 g Basic weight for 0 mm stroke107 g Type of mountingEither: Via female thread With accessories Pneumatic connectionM5 Material coverWrought aluminium alloy Material sealsNBR TPE-U(PU) Material housingAnodised wrought aluminium alloy Material piston sealNBR Material piston rodHigh-alloy stainless steel
