Brief Introduction

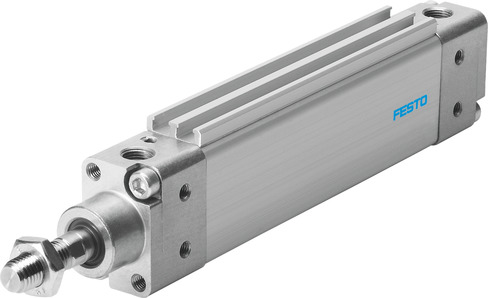

DZH-25-400-PPV-A

Stroke400 mm Piston diameter25 mm Equivalent diameter Piston rod threadM10x1.25 Torsional backlash at piston rod +/-2.4 deg CushioningPneumatic cushioning, adjustable at both ends Mounting positionoptional Mode of operationDouble-acting DesignPiston Piston rod Profile barrel Position detectionVia proximity switch Symbol00991235 VariantsPiston rod at one end Protection against torque/guideOval piston Operating pressure0.1 MPa ... 1 MPa Operating pressure1 bar ... 10 bar Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B2-L Ambient temperature-20 °C ... 80 °C Cushioning length17 mm Max. torque for protection against torsion0.8 Nm Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N Moving mass356 g Product weight1064 g Additional weight per 10 mm stroke18.4 g Basic weight for 0 mm stroke326 g Type of mountingEither: Via female thread With accessories Pneumatic connectionG1/8 Note on materialsRoHS-compliant Material coverAluminium Material sealsTPE-U(PU) Material housingAluminium Material piston sealTPE-U(PU) Material piston rodHigh-alloy steel
