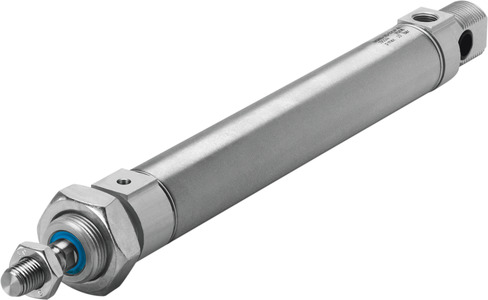

ESNU-16-25-P-A

Stroke25 mm Piston diameter16 mm Piston rod threadM6 CushioningElastic cushioning rings/plates at both ends Mounting positionoptional Conforms to standardCETOP RP 52 P ISO 6432 Piston-rod endMale thread DesignPiston Piston rod Cylinder barrel Position detectionVia proximity switch Symbol00991729 VariantsPiston rod at one end Operating pressure0.12 MPa ... 1 MPa Operating pressure1.2 bar ... 10 bar Mode of operationPushing Single-acting Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Ambient temperature-20 °C ... 80 °C Impact energy in end positions0.15 J Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke106.5 N Moving mass for 0 mm stroke23 g Additional moving mass per 10 mm stroke2 g Basic weight for 0 mm stroke89.9 g Additional weight per 10 mm stroke4.6 g Type of mountingWith accessories Pneumatic connectionM5 Note on materialsRoHS-compliant Material coverWrought aluminium alloy Colourless anodised Material sealsNBR TPE-U(PU) Material piston rodHigh-alloy stainless steel Material cylinder barrelHigh-alloy stainless steel
