- Stroke300 mm
- Axial backlash end-position locking1.3 mm
- Unlocking pressure≥0.15 MPa
- Unlocking pressure≥1.5 bar
- Locking pressure≤0.05 MPa
- Locking pressure≤0.5 bar
- Operating pressure0.01 MPa ... 1.2 MPa
- Operating pressure0.1 bar ... 12 bar
- Mode of operationDouble-acting
- CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
- UKCA marking (see declaration of conformity)To UK EX instructions
- Explosion protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX)
- ATEX category gasII 2G
- ATEX category dustII 2D
- Explosion ignition protection type for gasEx h IIC T4 Gb
- Explosion ignition protection type for dustEx h IIIC T120°C Db
- Explosion ambient temperature-20°C <= Ta <= +60°C
- Explosion protection certification outside the EUEPL Db (GB) EPL Gb (GB)
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 - Moderate corrosion stress 3 - high corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L VDMA24364 zone III
- Ambient temperature-40 °C ... 150 °C
- Impact energy in end positions0.3 J ... 1 J
- Cushioning length0 mm ... 22 mm
- Max. torque for protection against torsion1.5 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke990 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke990 N ... 1178 N
- Additional weight per piston rod extension of 10 mm25 g
- Additional weight per piston rod thread extension of 10 mm14 g
- Type of mountingEither: Via female thread With accessories
- Pneumatic connectionG1/4
- Note on materialsRoHS-compliant
- Material coverDie-cast aluminium, coated
- Material springSpring steel High-alloy stainless steel
- Clamping unit housing materialAnodised wrought aluminium alloy
- Material housing end-position lockingAnodised wrought aluminium alloy
- Material piston sealFPM HNBR TPE-U(PU)
- Material clamping jaws clamping unitBrass
- Piston clamping unit materialPOM
- Material piston end-position lockingHardened steel
- Material pistonWrought aluminium alloy
- Material piston rodHigh-alloy stainless steel, hard chrome-plated High-alloy steel High-alloy stainless steel
- Material piston rod wiperFPM HNBR PE TPE-U(PU)
- Buffer seal materialFPM TPE-U(PU)
- Cushioning boss materialAluminium POM
- Material cylinder barrelSmooth-anodised wrought aluminium alloy
- Material nutGalvanised steel
- Material rod wiperBrass PTFE reinforced TPE-E
- Material bearingBronze Metal polymer compound POM
- Material collar screwsGalvanised steel
- Material bellowsNBR PA
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文

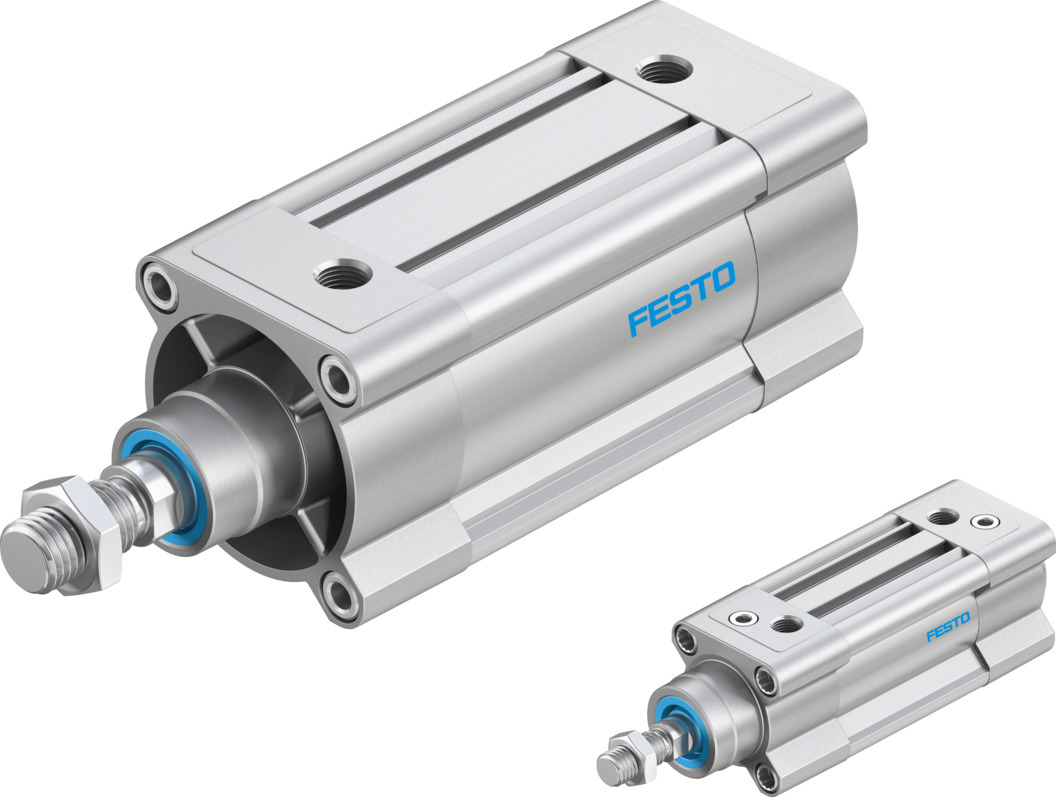

ISO cylinder
DSBC-50-300-F-PPVA-T1
DSBC-50-300-F-PPVA-T1
Subscribe to get pricesModel: DSBC-50-300-F-PPVA-T1
Order No: 1463770
SKU: 10000094940401
Condition: New Sealed Under Guarantee
Size: 0.00 mm，0.00 mm，0.00 mm
Weight: 2890.00g
Product Selection Engineer：Zuohuiqin
In Stock
Brief Introduction
DSBC-50-300-F-PPVA-T1
Stroke300 mm Axial backlash end-position locking1.3 mm Unlocking pressure≥0.15 MPa Unlocking pressure≥1.5 bar Locking pressure≤0.05 MPa Locking pressure≤0.5 bar Operating pressure0.01 MPa ... 1.2 MPa Operating pressure0.1 bar ... 12 bar Mode of operationDouble-acting CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX) UKCA marking (see declaration of conformity)To UK EX instructions Explosion protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) ATEX category gasII 2G ATEX category dustII 2D Explosion ignition protection type for gasEx h IIC T4 Gb Explosion ignition protection type for dustEx h IIIC T120°C Db Explosion ambient temperature-20°C
