Brief Introduction

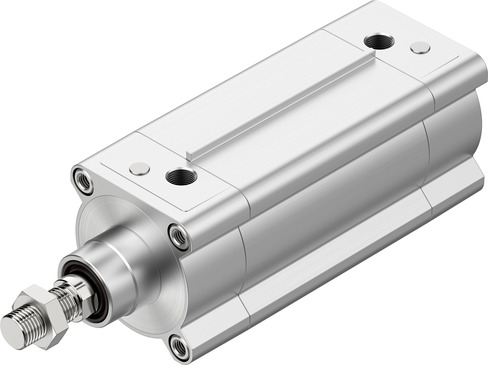

DSBF-C-80-400-PPSA-N3-R

Stroke400 mm Piston diameter80 mm Piston rod threadM20x1.5 CushioningSelf-adjusting pneumatic end-position cushioning Mounting positionoptional Conforms to standardISO 15552 Piston-rod endMale thread DesignPiston Piston rod Profile barrel Position detectionVia proximity switch Symbol00992970 Operating pressure0.04 MPa ... 1.2 MPa Operating pressure0.4 bar ... 12 bar Mode of operationDouble-acting Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC3 - high corrosion stress LABS (PWIS) conformityVDMA24364-B2-L Ambient temperature-20 °C ... 80 °C Impact energy in end positions1.8 J Cushioning length31 mm Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke2721 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke3016 N Moving mass2360 g Moving mass for 0 mm stroke800 g Additional moving mass per 10 mm stroke39 g Product weight6931 g Basic weight for 0 mm stroke3131 g Additional weight per 10 mm stroke95 g Type of mountingEither: Via female thread With accessories Pneumatic connectionG3/8 Note on materialsRoHS-compliant Material coverCoated die-cast aluminium Material piston sealTPE-U(PU) Material pistonWrought aluminium alloy Material piston rodHigh-alloy stainless steel Material piston rod wiperTPE-U(PU) Buffer seal materialTPE-U(PU) Cushioning boss materialPOM Material cylinder barrelAnodised wrought aluminium alloy Material nutHigh-alloy stainless steel Material bearingPOM Material collar screwsGalvanised steel
