Brief Introduction

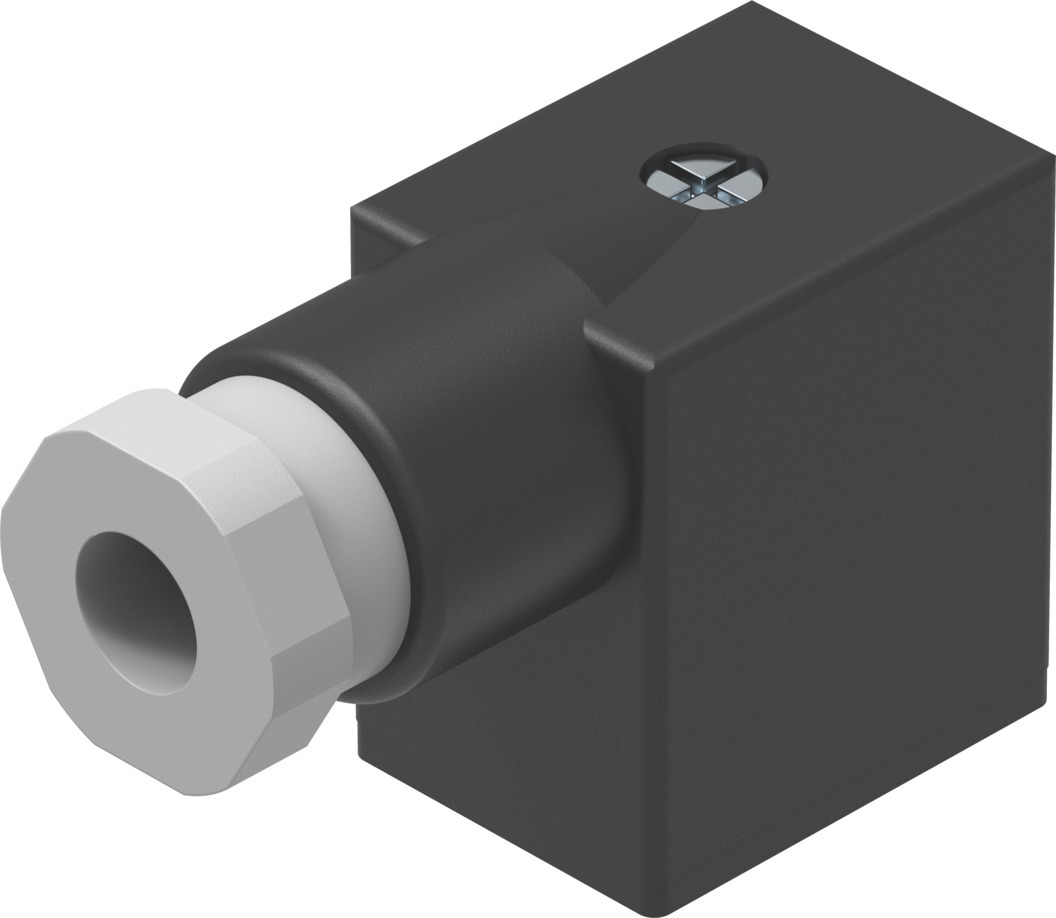

MSSD-F

Type of mountingOn solenoid valve via M3 central screw Cable outletAngled Note on cable outlet180° rotatable Mounting positionoptional Product weight17 g Electrical connection3-pin Angled socket Square design MSF Electrical connection 1, designAngular Electrical connection 1, connection typeSocket Electrical connection 1, cable outletAngled Electrical connection 1, number of connections/cores3 Electrical connection 1, connection pattern00995628 Electrical connection 2Screw terminal Operational voltage range DC0 V ... 250 V Operational voltage range AC0 V ... 250 V Current rating at 40° C16 A Protective conductor connectionAvailable Cable fittingPg 9 Cable diameter6 mm ... 8 mm Nominal cross section conductor≤1.5 mm² Degree of protectionIP65 Note on degree of protectionIn assembled state Ambient temperature-25 °C ... 90 °C CE mark (see declaration of conformity)To EU Low Voltage Directive In accordance with EU RoHS Directive UKCA marking (see declaration of conformity)To UK RoHS instructions To UK regulations for electrical equipment LABS (PWIS) conformityVDMA24364-B2-L Material housingPolymer Housing colourBlack Material sealsNBR
