Size
Standard
Nominal size
9 mm
Mounting position
optional
Design
Straight design
Size of pack
10
Design
Push-pull principle
Operating pressure complete temperature range
-0.095 MPa ... 0.6 MPa
Operating pressure complete temperature range
-0.95 bar ... 6 bar
Operating pressure complete temperature range
-13.775 psi ... 87 psi
Temperature-dependent operating pressure
-0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure
-0.95 bar ... 14 bar
Temperature-dependent operating pressure
-13.775 psi ... 203 psi
Note on operating pressure
Water: max. 0.6 MPa at max. 50°C
Operating medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Water (liquid, ice-free)
Note on operating and pilot medium
Lubricated operation possible
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Cleanroom class
Class 4 according to ISO 14644-1
Ambient temperature
-10 °C ... 80 °C
Product weight
16 g
Pneumatic connection, port 1
For tubing outer diameter of 10 mm
Pneumatic connection, port 2
For tubing outside diameter of 10 mm
Colour of release ring
Blue
Note on materials
RoHS-compliant
Material housing
PBT
Material release ring
POM
Material tubing seal
NBR
Material tubing clamp component
High-alloy stainless steel
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文
Pneumatic fittings

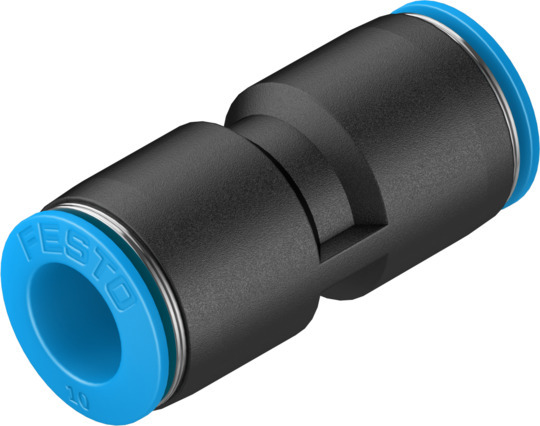

QS-10
QS-10
Subscribe to get pricesModel: QS-10
Order No: 153034
SKU: 10000008496501
Condition: New Sealed Under Guarantee
Size: 0.00 m，0.00 m，0.00 m
Weight: 16.00g
Product Selection Engineer：Zuohuiqin
In Stock
Brief Introduction
QS-10
SizeStandardNominal size9 mmMounting positionoptionalDesignStraight designSize of pack10DesignPush-pull principleOperating pressure complete temperature range-0.095 MPa ... 0.6 MPaOperating pressure complete temperature range-0.95 bar ... 6 barOperating pressure complete temperature range-13.775 psi ... 87 psiTemperature-dependent operating pressure-0.095 MPa ... 1.4 MPaTemperature-dependent operating pressure-0.95 bar ... 14 barTemperature-dependent operating pressure-13.775 psi ... 203 psiNote on operating pressureWater: max. 0.6 MPa at max. 50°COperating mediumCompressed air to ISO 8573-1:2010 [7:-:-]Water (liquid, ice-free)Note on operating and pilot mediumLubricated operation possibleCorrosion resistance class CRC1 - Low corrosion stressLABS (PWIS) conformityVDMA24364-B1/B2-LCleanroom classClass 4 according to ISO 14644-1Ambient temperature-10 °C ... 80 °CProduct weight16 gPneumatic connection, port 1For tubing outer diameter of 10 mmPneumatic connection, port 2For tubing outside diameter of 10 mmColour of release ringBlueNote on materialsRoHS-compliantMaterial housingPBTMaterial release ringPOMMaterial tubing sealNBRMaterial tubing clamp componentHigh-alloy stainless steel
