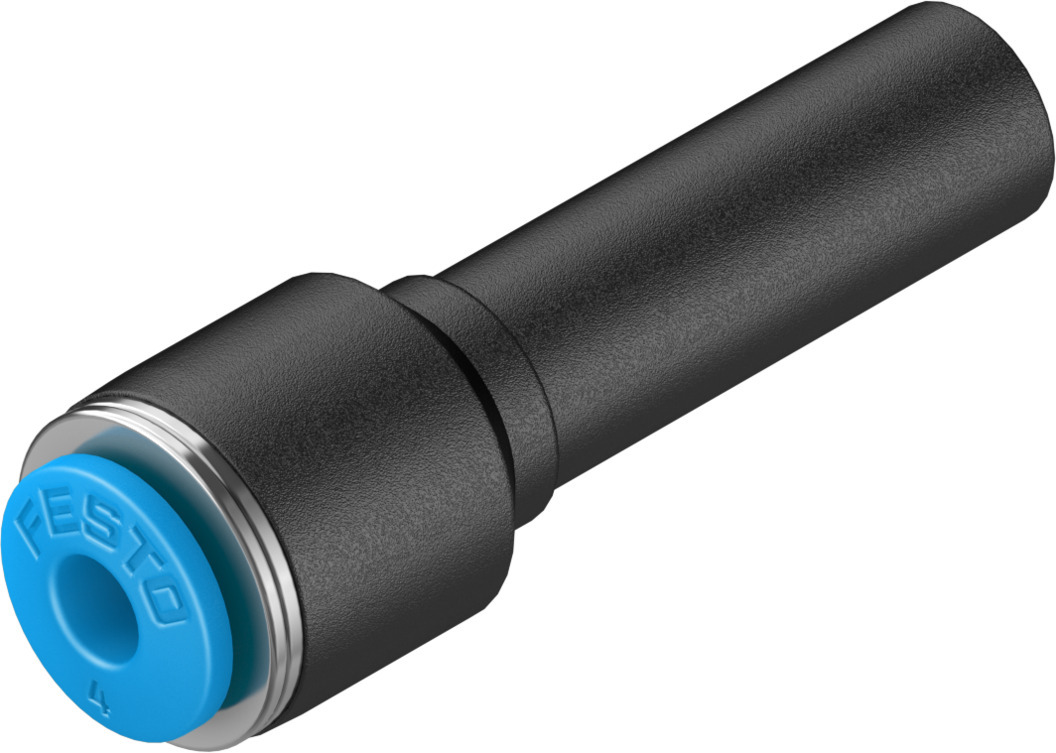

QS-8H-4

SizeStandard Nominal size2.4 mm Mounting positionoptional DesignStraight design Size of pack10 DesignPush-pull principle Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa Operating pressure complete temperature range-0.95 bar ... 6 bar Operating pressure complete temperature range-13.775 psi ... 87 psi Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa Temperature-dependent operating pressure-0.95 bar ... 14 bar Temperature-dependent operating pressure-13.775 psi ... 203 psi Note on operating pressureWater: max. 0.6 MPa at max. 50°C Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Note on operating and pilot mediumLubricated operation possible Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Cleanroom classClass 4 according to ISO 14644-1 Ambient temperature-10 °C ... 80 °C Product weight3.8 g Pneumatic connection, port 1Push-in sleeve Ø 8 mm Pneumatic connection, port 2For tubing outside diameter of 4 mm Colour of release ringBlue Note on materialsRoHS-compliant Material housingPBT Material release ringPOM Material tubing sealNBR Material tubing clamp componentHigh-alloy stainless steel
