Temperature-dependent operating pressure
-0.95 bar ... 14 bar
Temperature-dependent operating pressure
-13.775 psi ... 203 psi
Operating medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot medium
Lubricated operation possible
Corrosion resistance class CRC
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-10 °C ... 80 °C
Product weight
3 g
Pneumatic connection, port 1
For tubing outside diameter of 6 mm
Pneumatic connection, port 2
For tubing outside diameter of 4 mm
Colour of release ring
Blue
Note on materials
RoHS-compliant
Material housing
PBT
Material release ring
POM
Material tubing seal
NBR
Material tubing clamp component
High-alloy stainless steel
USD
- USD
- CNY
- HKD
- EUR
English
- العربية
- čeština
- dansk
- Deutsch
- Ελληνικά
- English
- Español
- Français
- ic
- Italiano
- Netherlands
- norsk Språk
- język polski
- pt
- Português
- 中文

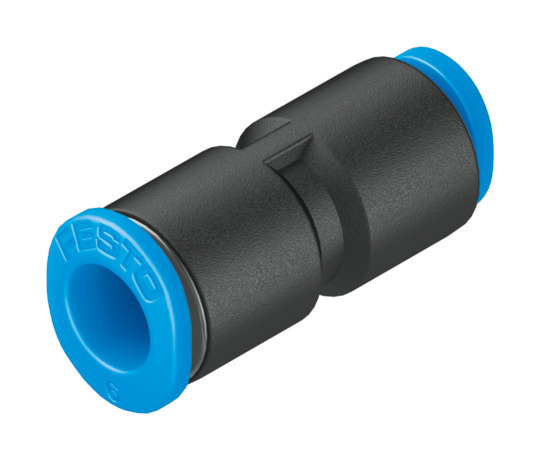

Pneumatic fittings
QSM-6-4
QSM-6-4
Subscribe to get pricesModel: QSM-6-4
Order No: 153327
SKU: 1736925178892590610
Condition: New Sealed Under Guarantee
Size: 0.00 ，0.00 ，0.00
Weight: 3.00g
Product Selection Engineer：Zuohuiqin
In Stock
Brief Introduction
QSM-6-4
Temperature-dependent operating pressure-0.95 bar ... 14 barTemperature-dependent operating pressure-13.775 psi ... 203 psiOperating mediumCompressed air to ISO 8573-1:2010 [7:-:-]Note on operating and pilot mediumLubricated operation possibleCorrosion resistance class CRC1 - Low corrosion stressLABS (PWIS) conformityVDMA24364-B1/B2-LAmbient temperature-10 °C ... 80 °CProduct weight3 gPneumatic connection, port 1For tubing outside diameter of 6 mmPneumatic connection, port 2For tubing outside diameter of 4 mmColour of release ringBlueNote on materialsRoHS-compliantMaterial housingPBTMaterial release ringPOMMaterial tubing sealNBRMaterial tubing clamp componentHigh-alloy stainless steel
