Brief Introduction

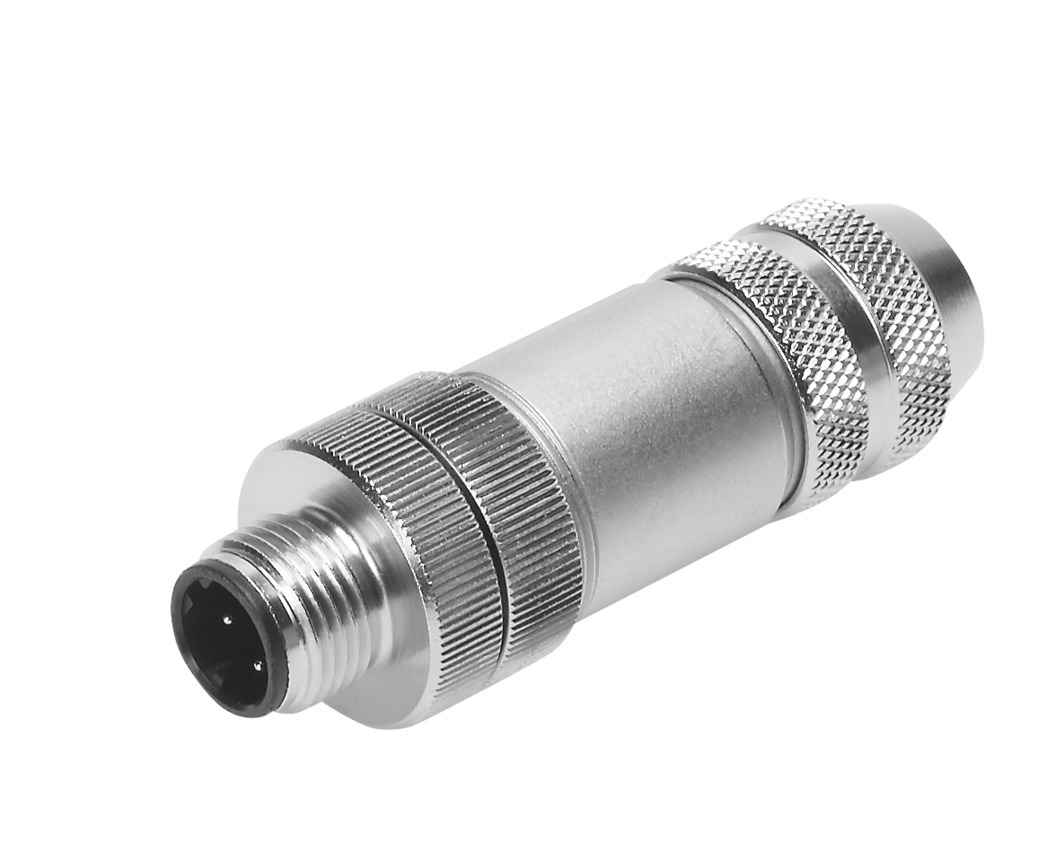

NECU-M-S-D12G4-C2-ET

Based on standardEN 61076-2-101 EN 61984 Product weight44.3 g Electrical connection 1Straight plug connector, M12x1, 4-pin, D-coded, screenable Plug encodingD Electrical connection 2Screw terminal, can be screened Operational voltage range DC0 V ... 250 V Operational voltage range AC0 V ... 250 V Immunity to surge2.5 kV Transmission characteristicsDIN EN 50173/CAT 5 Permissible cable diameter6 mm ... 8 mm Connection cross section0.14 mm² ... 0.75 mm² Degree of protectionIP67 Ambient temperature-25 °C ... 85 °C CE mark (see declaration of conformity)To EU Low Voltage Directive UKCA marking (see declaration of conformity)To UK regulations for electrical equipment LABS (PWIS) conformityVDMA24364-B2-L Note on materialsRoHS-compliant Pollution degree3 Corrosion resistance class CRC1 - Low corrosion stress Material housingDie-cast zinc, nickel-plated Material electrical contactGold-plated brass
