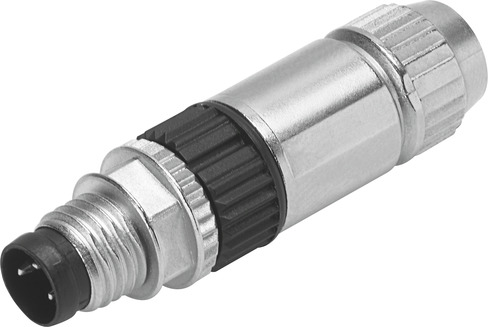

NECU-S-M8G3-HX

Based on standardEN 61076-2-104 EN 61984 Approvalc UL us - Recognized (OL) Frequency of connection3 Product weight7.8 g Electrical connection3-pin M8x1 Straight plug/insulation displacement connector Operational voltage range DC0 V ... 32 V Operational voltage range AC0 V ... 32 V Current rating at 40° C4 A Immunity to surge0.8 kV Permissible cable diameter2.5 mm ... 5.1 mm Individual wire diameter≥0.1 mm Wire diameter0.9 mm ... 1.6 mm Connection cross section0.14 mm² ... 0.34 mm² Degree of protectionIP65 IP67 Ambient temperature-25 °C ... 85 °C LABS (PWIS) conformityVDMA24364-B2-L Note on materialsRoHS-compliant Pollution degree3 Corrosion resistance class CRC1 - Low corrosion stress Material housingPA Die-cast zinc Nickel-plated Material screw-type lockNickel-plated brass Material sealsFPM PUR Material electrical contactBronze Permissible insulating sheathPP PVC TPE-E
