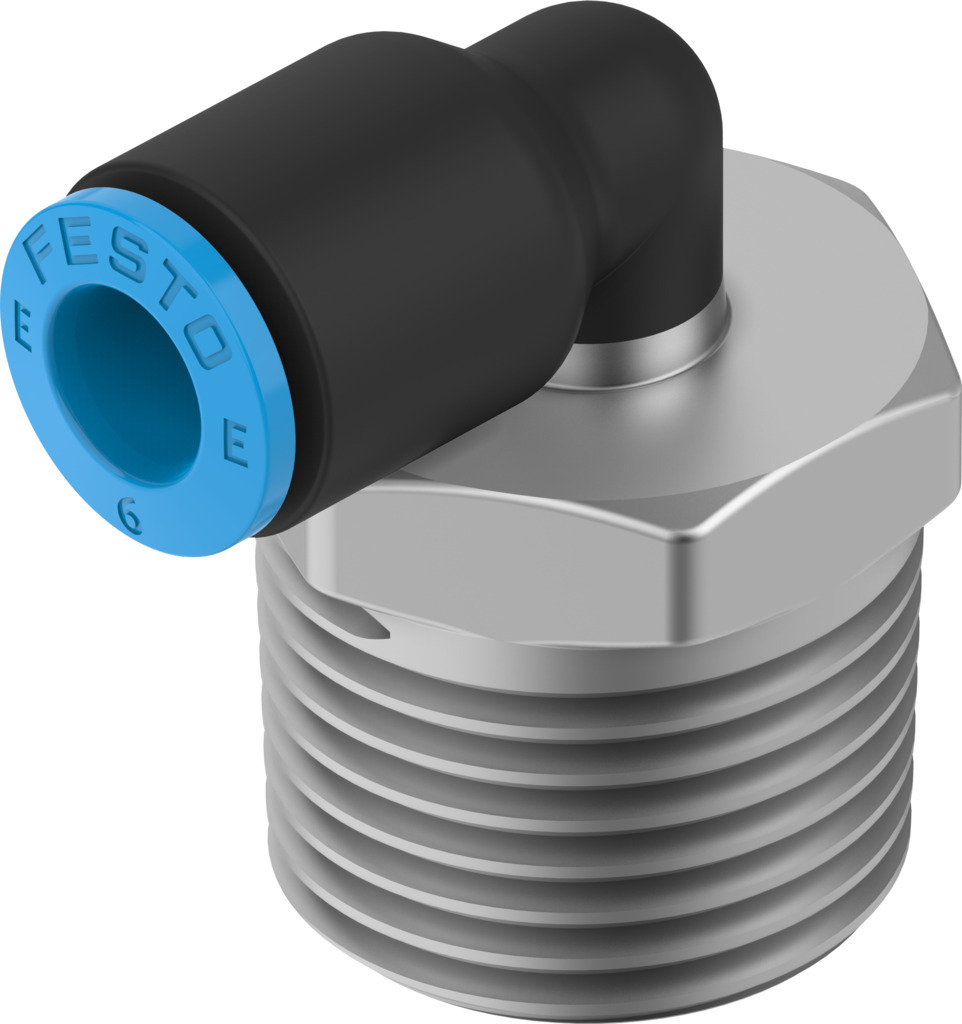

NPQE-L-R12-Q6-P5

SizeStandard Nominal size4 mm Type of seal on screwed plugCoating Mounting positionoptional DesignL-shape Size of pack5 DesignPush-pull principle Operating pressure complete temperature range-0.095 MPa ... 0.8 MPa Operating pressure complete temperature range-0.95 bar ... 8 bar Operating pressure complete temperature range-13.775 psi ... 116 psi Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible Corrosion resistance class CRC1 - Low corrosion stress LABS (PWIS) conformityVDMA24364 zone III Cleanroom classClass 4 according to ISO 14644-1 Ambient temperature-5 °C ... 60 °C Product weight44.89 g Type of mountingExternal hexagon, size 21 mm Pneumatic connection, port 1Male thread R1/2 Pneumatic connection, port 2For tubing outside diameter of 6 mm Colour of release ringBlue Note on materialsRoHS-compliant Material housingBrass, nickel-plated PBT Material thread sealPTFE Material release ringPOM Material tubing sealNBR Material tubing clamp componentStainless steel
