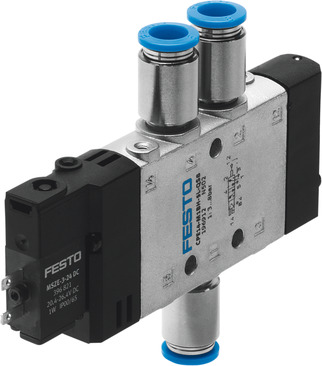

CPE14-M1BH-5L-QS-6

Valve function5/2-way, monostable Type of actuationElectric Construction width14 mm Standard nominal flow rate (standardised to DIN 1343)400 l/min pneumatic working portQS-6 Operating voltage24V DC Operating pressure0.3 MPa ... 0.8 MPa Operating pressure3 bar ... 8 bar DesignPiston gate valve Type of resetPneumatic spring Approvalc UL us - Recognized (OL) Maritime classificationSee certificate Certificate issuing authorityDNV-TAA000032X UL MH19482 Degree of protectionIP65 With plug socket To IEC 60529 Nominal size6 mm Exhaust-air functionWith flow control option Sealing principleSoft Mounting positionoptional Manual overrideDetenting via accessory Non-detenting Type of pilotingPilot actuated Pilot air supplyInternal Flow directionNon-reversible Symbol00991023 Valve position codeInscription label holder lapOverlap Switching time off32 ms Switching time on24 ms Duty cycle100% in conjunction with holding current reduction Max. positive test pulse with 0 signal1200 µs Max. negative test pulse with 1 signal900 µs Characteristic coil data24 V DC: 1.28 W Permissible voltage fluctuations-15%/+10% Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27 Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Media temperature-5 °C ... 50 °C Ambient temperature-5 °C ... 50 °C Electrical connection2-pin Type of mountingWith through-hole Pilot exhaust port 82M3 Pilot exhaust port 84M3 Pilot air port 12M3 Pilot air port 14M3 Pneumatic connection, port 1QS-6 Pneumatic connection, port 2QS-6 Pneumatic connection, port 3G1/8 Pneumatic connection, port 4QS-6 Pneumatic connection, port 5G1/8 Note on materialsRoHS-compliant Material sealsNBR Material housingDie-cast aluminium
