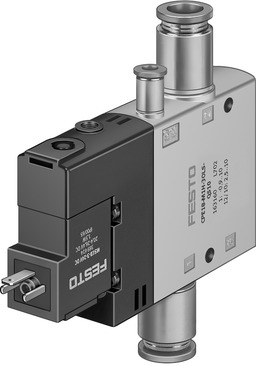

CPE24-M1H-3GLS-QS-12

Valve function3/2-way, closed, monostable Type of actuationElectric Construction width24 mm Standard nominal flow rate (standardised to DIN 1343)1650 l/min pneumatic working portQS-12 Operating voltage24V DC Operating pressure-0.09 MPa ... 1 MPa Operating pressure-0.9 bar ... 10 bar DesignPiston gate valve Type of resetPneumatic spring Approvalc UL us - Recognized (OL) Maritime classificationSee certificate Certificate issuing authorityDNV-TAA000032X UL MH19482 Degree of protectionIP65 With plug socket To IEC 60529 Nominal size11 mm Sealing principleSoft Mounting positionoptional Manual overrideDetenting via accessory Non-detenting Type of pilotingPilot actuated Pilot air supplyExternal Flow directionNon-reversible Symbol00991405 Valve position codeInscription label holder lapOverlap Pilot pressure0.25 MPa ... 1 MPa Pilot pressure2.5 bar ... 10 bar Switching time off33 ms Switching time on50 ms Duty cycle100% Max. positive test pulse with 0 signal3300 µs Max. negative test pulse with 1 signal3100 µs Characteristic coil data24 V DC: 1.5 W Permissible voltage fluctuations-15%/+10% Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required) Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27 Corrosion resistance class CRC2 - Moderate corrosion stress LABS (PWIS) conformityVDMA24364-B1/B2-L Media temperature-5 °C ... 50 °C Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4] Ambient temperature-5 °C ... 50 °C Electrical connectionType C Type of mountingWith through-hole Pilot exhaust port 82M5 Pilot air port 12M5 Pneumatic connection, port 1QS-12 Pneumatic connection, port 2QS-12 Pneumatic connection, port 3G3/8 Note on materialsRoHS-compliant Material sealsNBR Material housingDie-cast aluminium
